K1001_İNŞAAT KONTEYNER

Technical Data and Specifications

Seismic Conditions:

• Region: 1st degree seismic zone
• Effective Ground Acceleration Coefficient: Ao = 0.40

Climate Conditions:

• Climate Zones: Suitable for production in 1st, 2nd, and 3rd climate zones

Load Capacities:

• Snow Load: 80 kg/m² (Varies depending on installation location)
• Wind Speed: 75 km/h
• Frame Load Capacity: 200 kg/m² (For two-story buildings, calculated according to T.S 498)

Thermal Insulation Values:

• Facade Thermal Transmission (U) Value: 0.71 W/m².K
• Roof Thermal Transmission (U) Value: 0.37 W/m².K

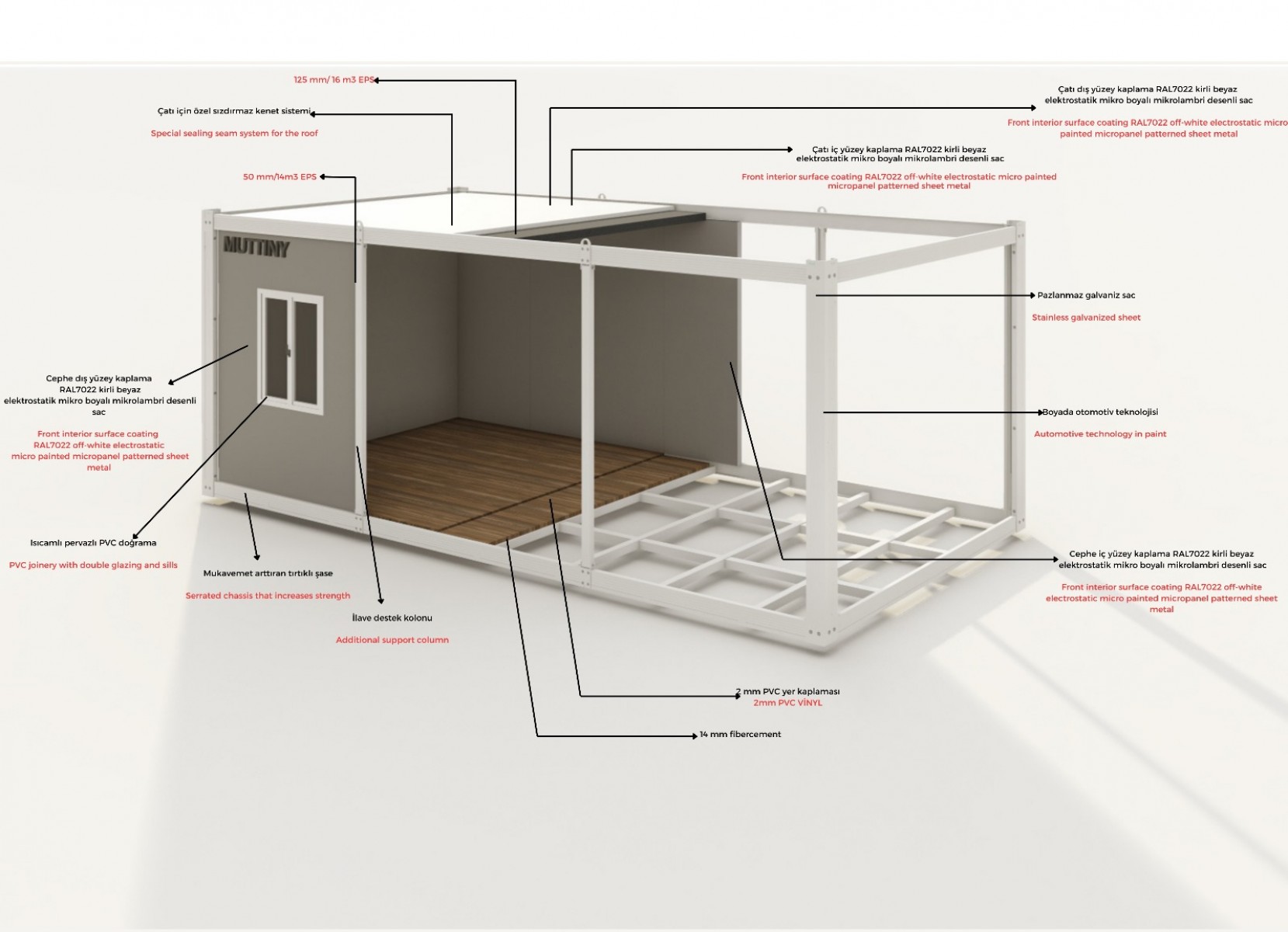

Material Specifications:

• Light Steel Material: TS EN 10346 DX 51D+Z / DIN EN 10169
• Sheet Metal: Electrostatic painted galvanized sheet, RAL 9002 and RAL 1019
• EPS (Styrofoam): Compliant with DIN 4102 standards

Foundation System:

• Frame: Container edge frames and corner posts, produced with special bent, non-welded galvanized sheet material, bolted system. The foundation must be level.
• Wind Speed Anchoring: Optional. Anchoring is the customer's responsibility, and Karmod does not accept responsibility.
• Floor Covering: 14 mm thick fiber cement and cement particle boards with 2 mm PVC coating

Wall System:

• System: Specially shaped EPS-filled sandwich panel
• Exterior and Interior Surface Coating: RAL 9002 electrostatic painted 0.45 mm galvanized sheet
• Wall Insulation: Materials insulated with 50 mm thick, 12 kg/m³ EPS

Roof System:

• Roof: 100% waterproof, specially shaped standing seam, EPS-filled sandwich panel. Rainwater is drained through a special seam system.
• Roof Insulation: Materials insulated with 125 mm thick, 16 kg/m³ EPS
• Exterior and Interior Surface Coating: RAL 9002 electrostatic painted galvanized sheet

Doors:

• Exterior Door: 1.2 mm door frame and 0.5 mm painted sheet door body, with sealing gaskets, impact and scratch resistant. The door leaf is filled with 20 kg/m³ EPS for sound and thermal insulation.
• Interior Door: Electrostatic painted galvanized metal frame with MDF-lam door (1980 x 755 mm)

Windows:

• Window: 890 x 1135 mm PVC window, single leaf, opens 90 degrees
• Frame: PVC U frame
• Glass: Double-glazed ISICAM

Paints:

• Exterior and Interior Facade: RAL 9002 electrostatic painted sheet
• Metal Components: RAL 1019 electrostatic painted sheet

Electrical Installation:

• System and Cables: Surface-mounted. Cables: 3x2.5 for sockets, 2x1.5 for lighting, 3x1.5 for switches, NYM TSE cables
• Lighting: TSE certified single-socket globe
• Sockets and Switches: Sockets and switches in every room. Telephone socket is optional.

Plumbing:

• System: Surface-mounted, standard hot and cold water system.
• ABS Plastic Floor: Waterproof, glossy, fiber-reinforced ABS for WC containers
• Toilet + Tank: Rear outlet ceramic toilet, TSE certified. Plastic tank used.
• Shower Tray: TSE certified, acrylic-based square shower tray (No shower tray in WC-shower containers)
• Sink: Ceramic, TSE certified; pedestal sink used in WC and shower containers.
• Clean Water Plumbing: TSE certified PPRC materials
• Waste Water Plumbing: TSE certified PVC materials
• Accessories: Mirror, towel rack, metal paper holder, plastic liquid soap dispenser, etc., TSE certified materials

WC-Shower:

• Ventilation: Shower areas have shower curtains; 210 mm x 250 mm vents for shower and WC ventilation, and two 600 mm x 400 mm hinged windows in corridors
• Floor and Wall Covering: PVC covering for shower floors and walls (minimum 1300 mm height), PVC covering for WC walls (minimum 300 mm height), and PVC covering for WC floor. Clean water pipes are covered with metal caps.
• Door: 700 mm or 900 mm wide outward-opening door for WC entry
• Lighting: LED lighting used in corridors
